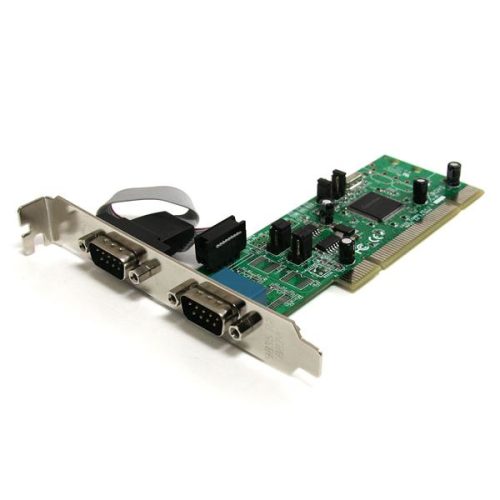

StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.

The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.

With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage
– Much larger FIFO buffer than standard serial cards (256 byte vs. 32 or 64 byte) minimizes data loss and optimizes host efficiency
– A simple jumper change allows you to select either RS422 or RS485 serial interface formats specific to your application
– Standard and low profile/half-height bracket included, ensuring easy installation into almost any system

Dimensions

• Weight: 0.152kg
• Length: 17.5cm
• Width: 14.5cm
• Height:  3.2cm

Other

• Country Of Origin:
• Operating temperature: -10 – 80 °C
• Storage temperature: -20 – 100 °C
• Operating relative humidity: 5 – 85%
• Storage relative humidity:
